2002 HARLEY-DAVIDSON HERITAGE SPRINGER

Engine:Type: Air-cooled, 4-stroke, 45° V-twin, Twin Cam 88B balanced engine



Displacement: 1450 cc (88.53 cubic inches)



Bore x Stroke: 3.75 x 4.0 inches (95.25 mm x 101.60 mm)



Compression Ratio: 9.2:1



Drivetrain:Gearbox: Manual 5-speed



Final Drive: Belt



Dimensions and Weight:Overall Length: 94.1 to 95.4 inches (approx. 2390 to 2423 mm)



Dry Weight: Approximately 646 lbs (293 kg)



Seat Height: 25.9 to 26 inches (approx. 657 to 660 mm)



Fuel Capacity: 4.9 gallons (18.5 L)



Chassis and Brakes:Front Suspension: Springer forks



Rear Suspension: Mono shock, swingarm



Front Brakes: Single 292 mm disc with 2-piston caliper



Rear Brakes: Single 292 mm disc with 2-piston caliper



Tires (Front/Rear): D402F MH90-21 / K591 160/70B17

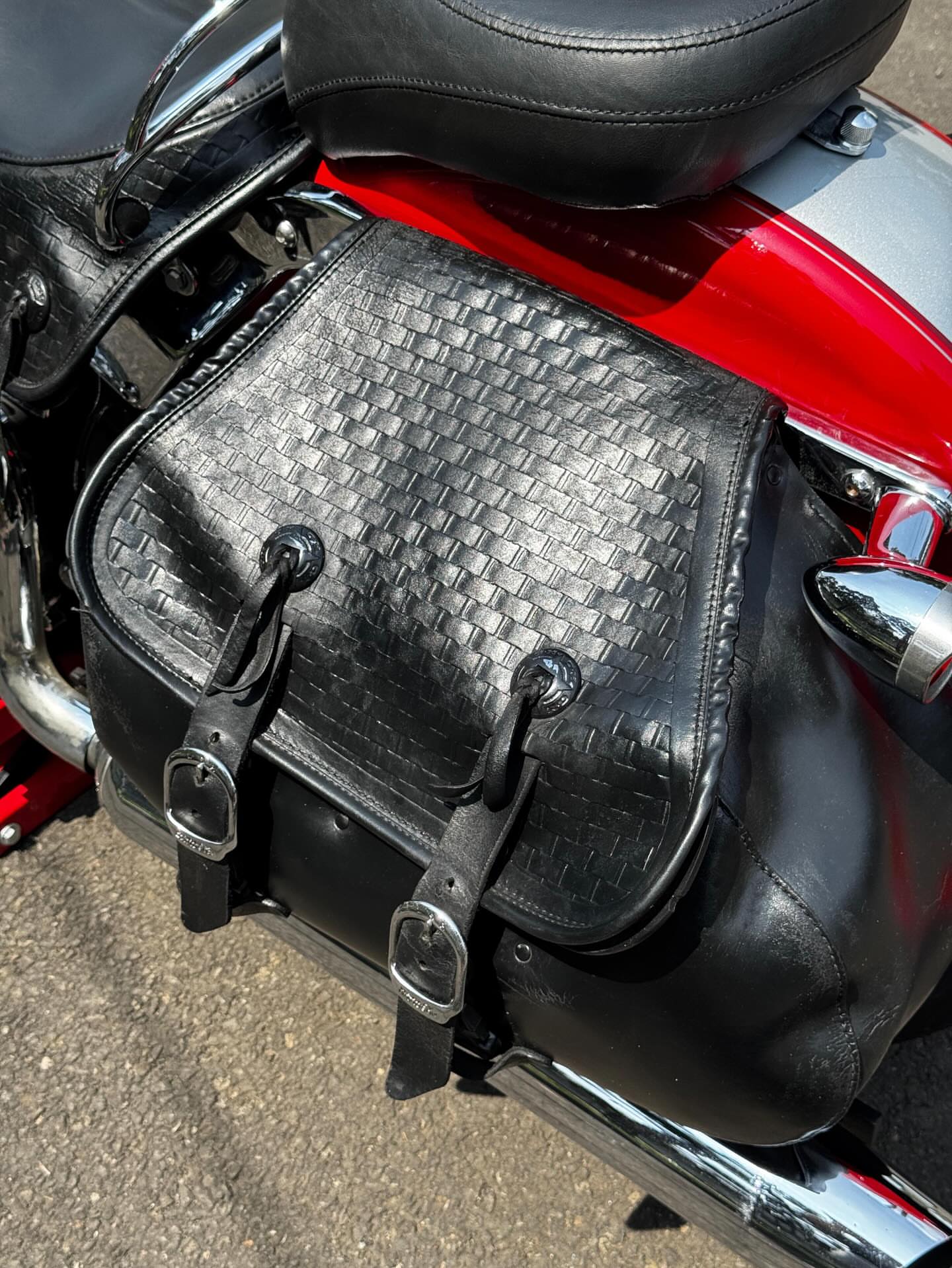

Key Features:The model features classic styling cues such as full fenders, whitewall tires, leather saddlebags, and a tombstone taillight.

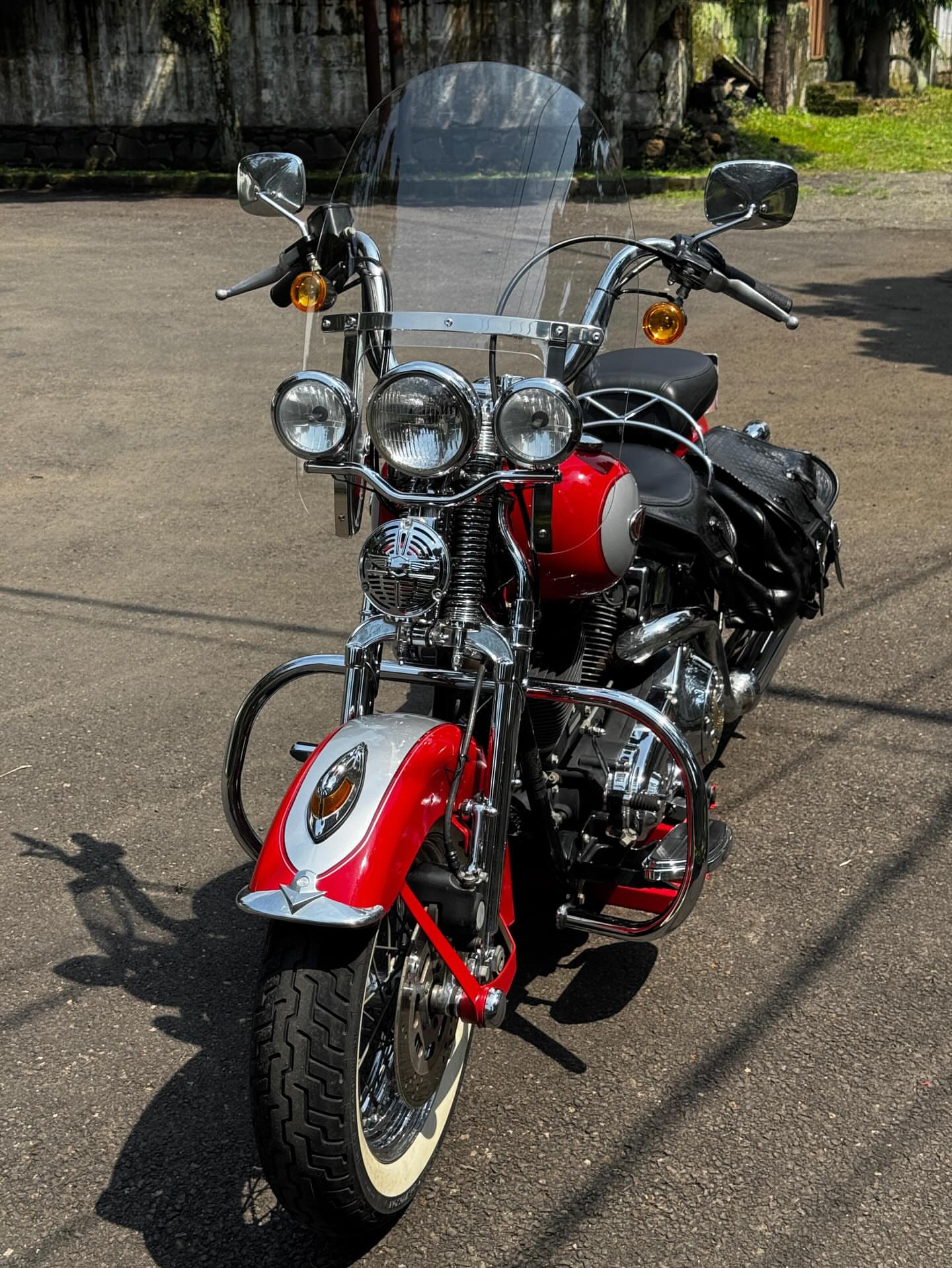

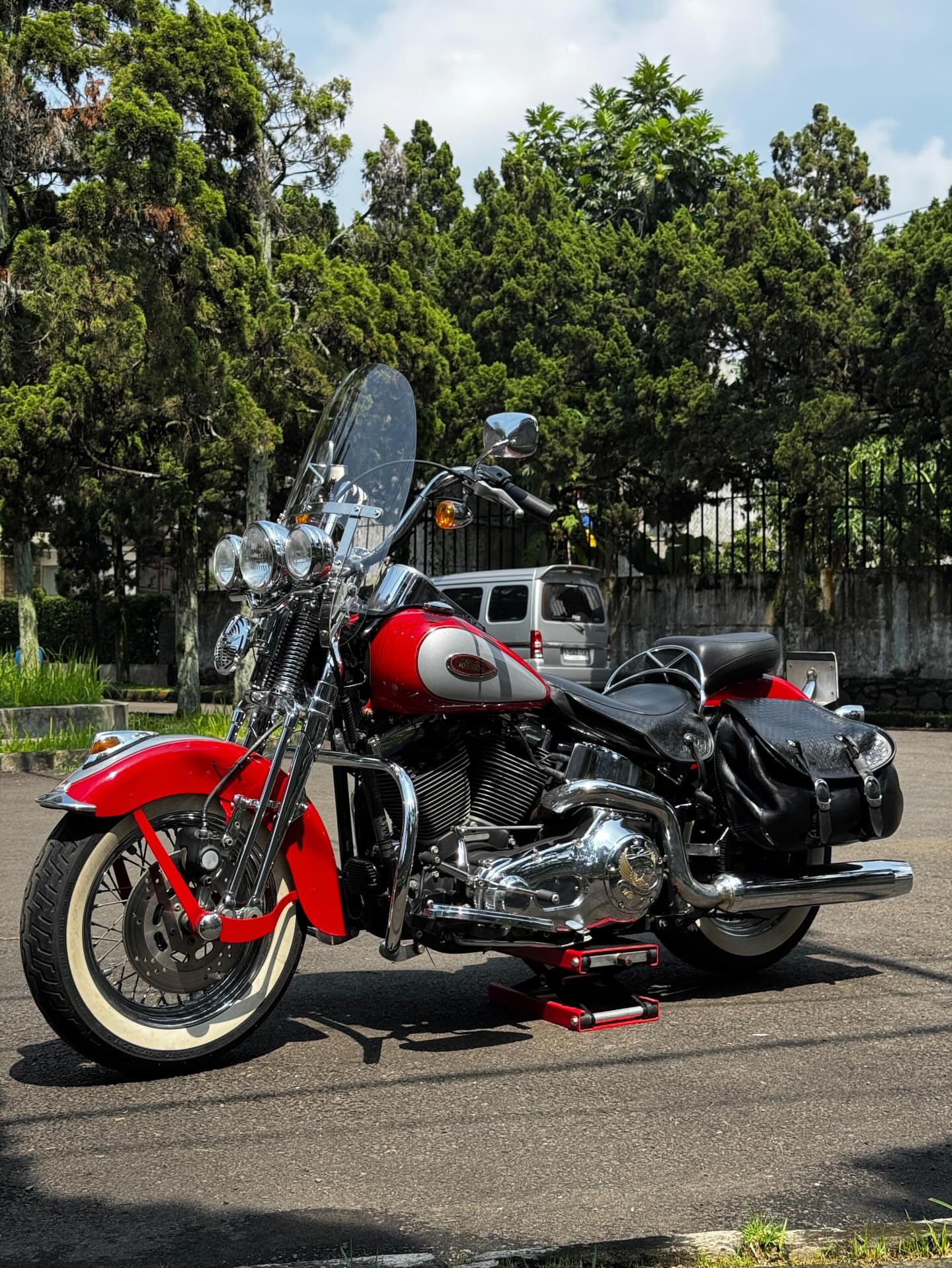

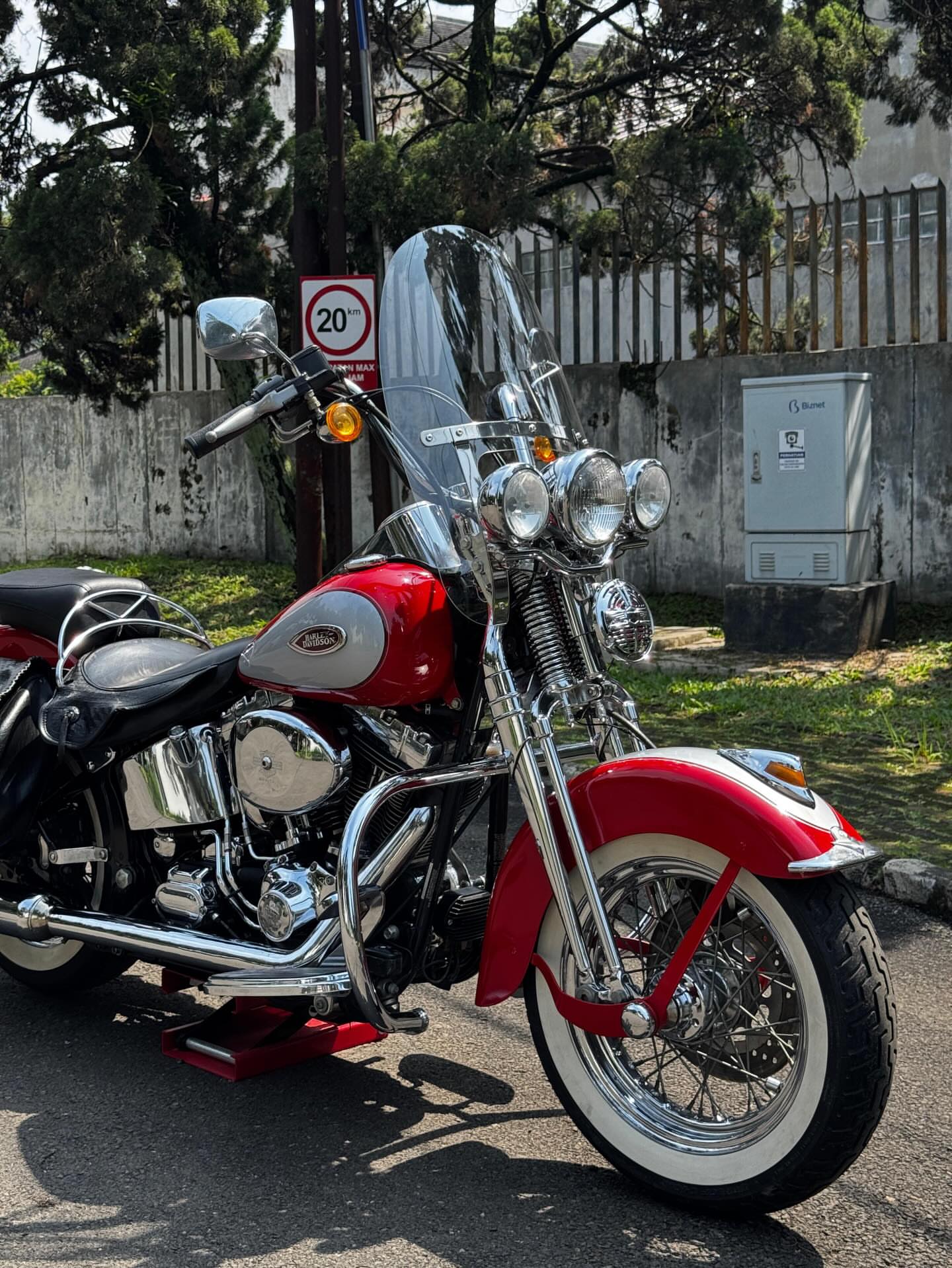

The specific bike in the image features a two-tone Real Red and Diamond Ice color scheme.
